Arrow 10 x 20 x 7 ft Charcoal Carport
$120.00
Latest Price: $120

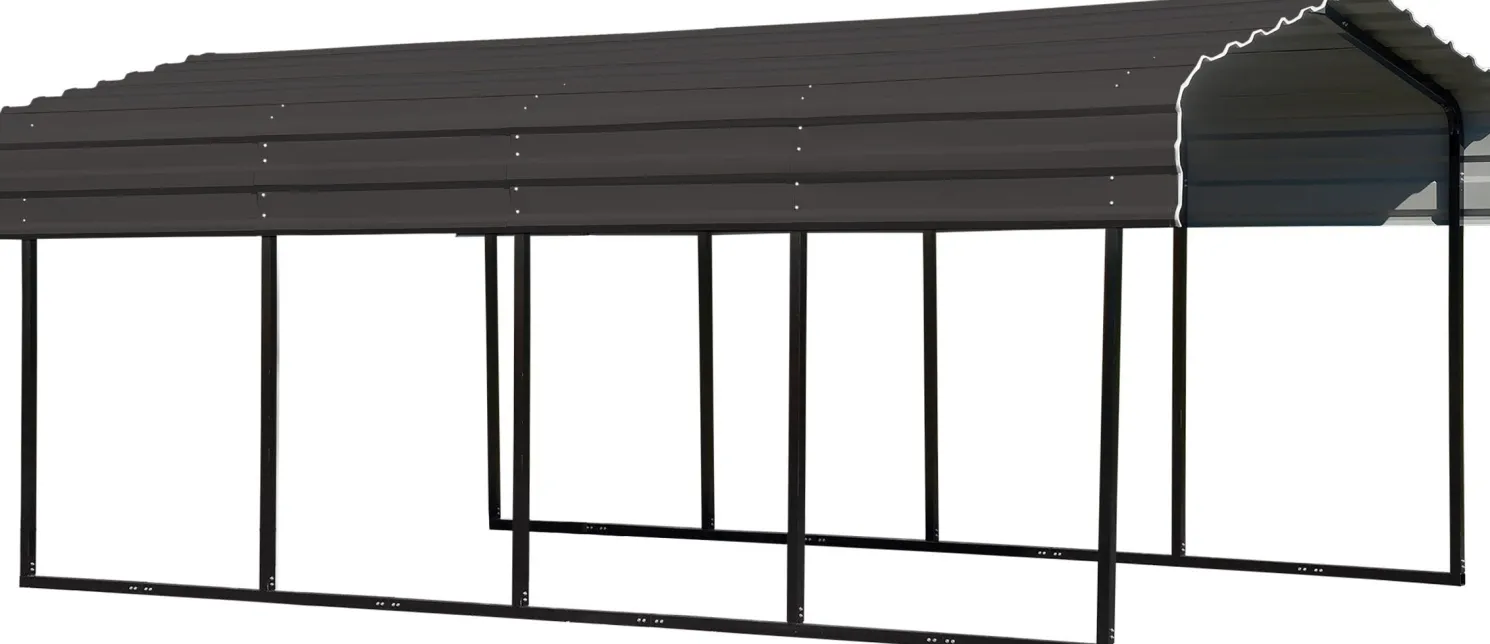

Meet the 10 x 20 ft. Carport from Arrow Sheds: the perfect, more compact all-steel carport fit for smaller vehicles, sedans, outdoor equipment and more. Get reliable shade and shelter with the Arrow Carport – featuring a heavy-duty galvanized steel roof and a all-steel, premium powder coated tube frame. Snow and wind rated, the Arrow Carport is the ultimate shade, shelter and -use carport that’s perfect for vehicles, boats, tractors, outdoor picnic areas and much more.
- 10 x 20 ft. All-Steel Carport
- Featuring a 2 in. square tube frame, the Arrow Carport provides stability and strength to the unit, increasing it’s wind and snow load capability.
- An all-weather carport that will protect your vehicle or outdoor space all-year long: the Arrow Carport is built to take on even tough weather – winds up to 100 MPH, and a snow load of 35 PSF.
- Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that’s faster, more convenient right out of the box

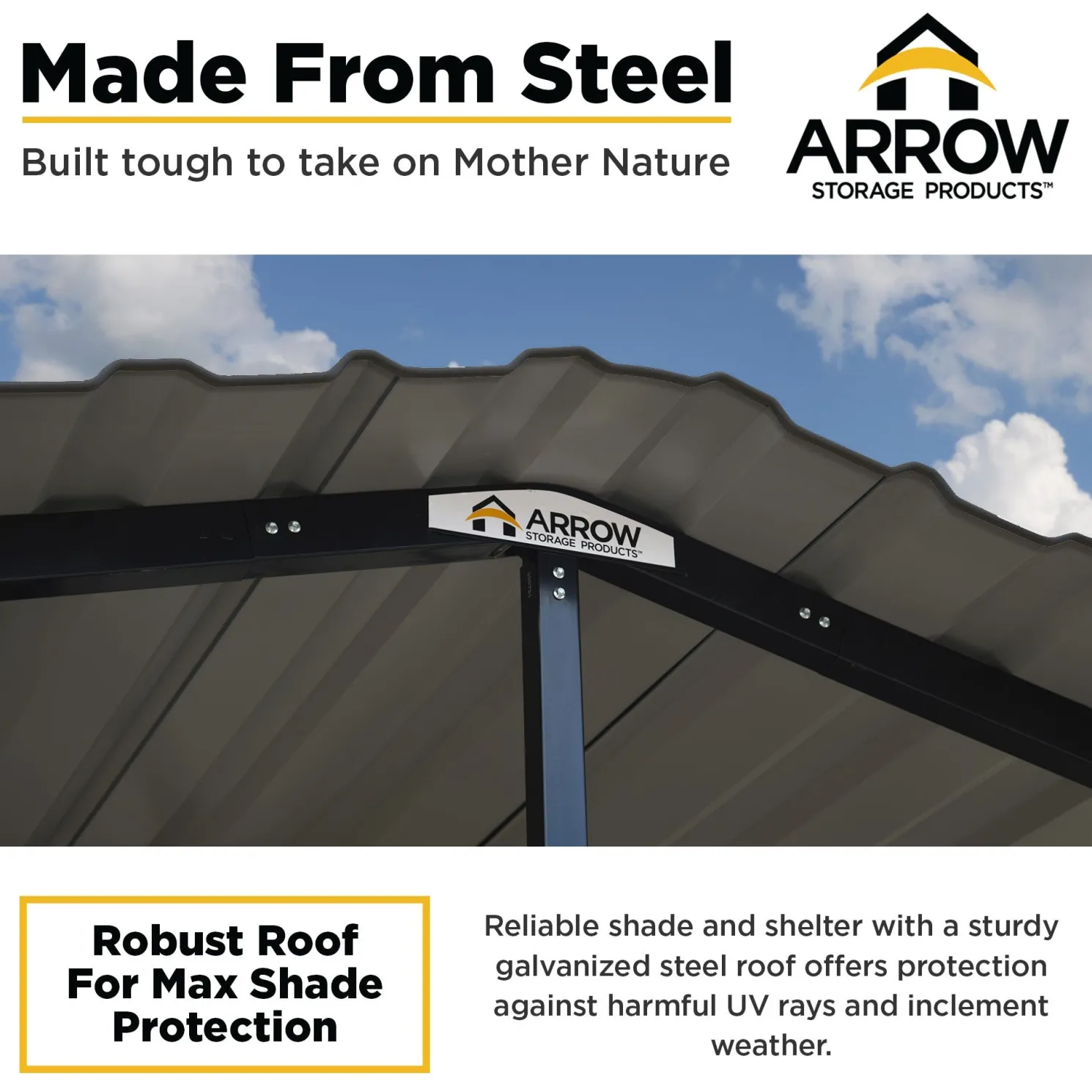

- A heavy-duty, galvanized steel roof that’s built to last – the 10 x 20 ft. Carport features a 29-gauge painted galvanized steel for corrosion resistance.
- Roof in an attractive Charcoal finish, with a black powder coated steel frame
- Rounded roof eaves off additional protection from the elements.
- 12 in. overhang at the roof gables offers additional protection.
- Comes with a 10-year warranty
Manuals
Additional Resources
- Schematic
Specifications
| Product Details | |
|---|---|
| SKU | CPHC102007 |
| Specifications | |
| Size | 10 x 20 x 7 ft. |
| Details | |
| Brand | Arrow Storage Products |
| Series | Arrow Carport |
| Roof Type | Peak |
| Material | Galvanized Steel |
| Color | Charcoal |
| Frame Color | Black |
| Assembly Required | Yes |
| Included Items | Roof Panels, Frame, Anchors, Hardware, Instructions |

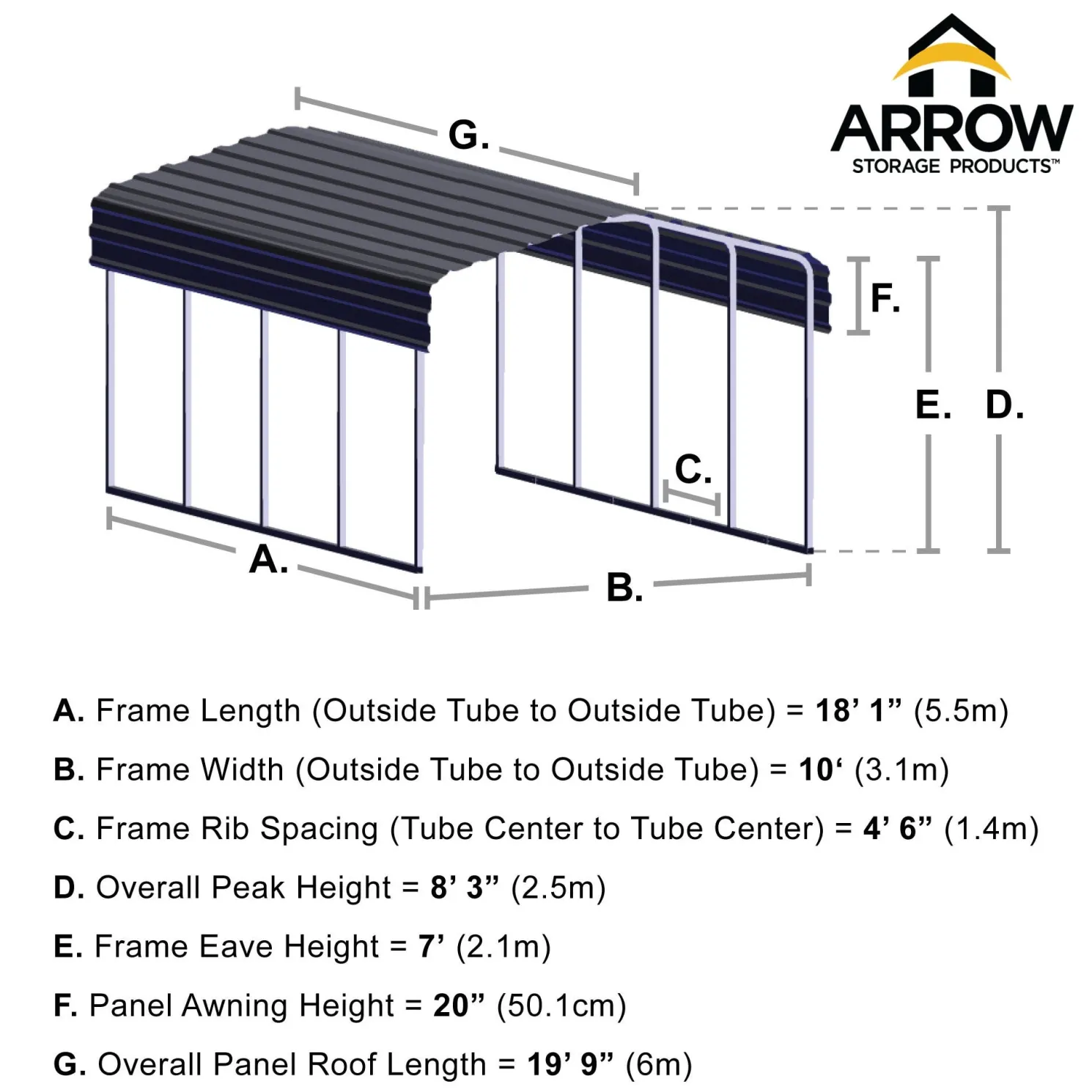

| Dimensions | |
| Width | 10 ft. |
| Length | 20 ft. |
| Height | 7 ft. |
| Total Storage Area | 191 sq. ft. |
| Total Storage Volume | 1435 cu ft |
| Assembled Exterior Dimensions Width | 10 ft. |
| Assembled Exterior Dimensions Depth | 19 ft. 8 in. |
| Assembled Exterior Dimensions Height | 8 ft. 2 in. |
| Assembled Interior Dimensions Width | 9 ft. 7 in. |
| Assembled Interior Dimensions Depth | 19 ft. 8 in. |
| Assembled Interior Dimensions Height | 8 ft. |
| Door / Entrance Height Outside | 82 |
| Wall Height | 7 ft. |
| Peak Height | 8 ft. 2 in. |
| Warranty/Certifications | |
| Warranty | 10 Year Limited |
| Wind Speed Rating | 161 |
| Snow Load Rating | 171 |
| Water-Resistant | Yes |
